企业简介

       山东华屹科创纳米材料有限公司成立于2018年,位于山东栖霞桃村工业园,占地面积30亩。公司致力于陶瓷粉体材料和先进工业陶瓷研发与制造,服务行业涵盖水处理、核电、国防工业等。主营产品为碳化硅、碳化硼陶瓷材料、纳米材料、防弹陶瓷、核电防护陶瓷、碳化硅纳米陶瓷过滤膜及先进的工业陶瓷产品。公司是国内唯一一家量产0.5um标准碳化硼纳米陶瓷粉的企业,也是全国唯一一家掌握碳化硅纳米陶瓷一体膜核心技术的企业。目前公司拥有多项发明专利和实用新型专利技术.
Shandong Huayi Tech Nano Material Co., Ltd. was established in 2018 and is located in Taocun Industrial Park, Qixia, Shandong, covering an area of 20,000 square meters. The company is committed to the development and manufacture of ceramic powder materials and advanced industrial ceramics. The service industry covers water treatment, nuclear power, defense industry, etc. The main products are silicon carbide, boron carbide ceramic materials, nano materials, bulletproof ceramics, nuclear power protection ceramics, silicon carbide nano ceramic filter membranes and advanced industrial ceramic products. The company is the only domestic enterprise that mass-produces 0.5um standard boron carbide nano-ceramic powder, and is the only enterprise in the country that masters the core technology of silicon carbide nano-ceramic integrated membrane. At present, the company has a number of invention patents and utility model patent technologies.



产品介绍

1 碳化硅陶瓷粉Silicon carbide ceramic powder.png

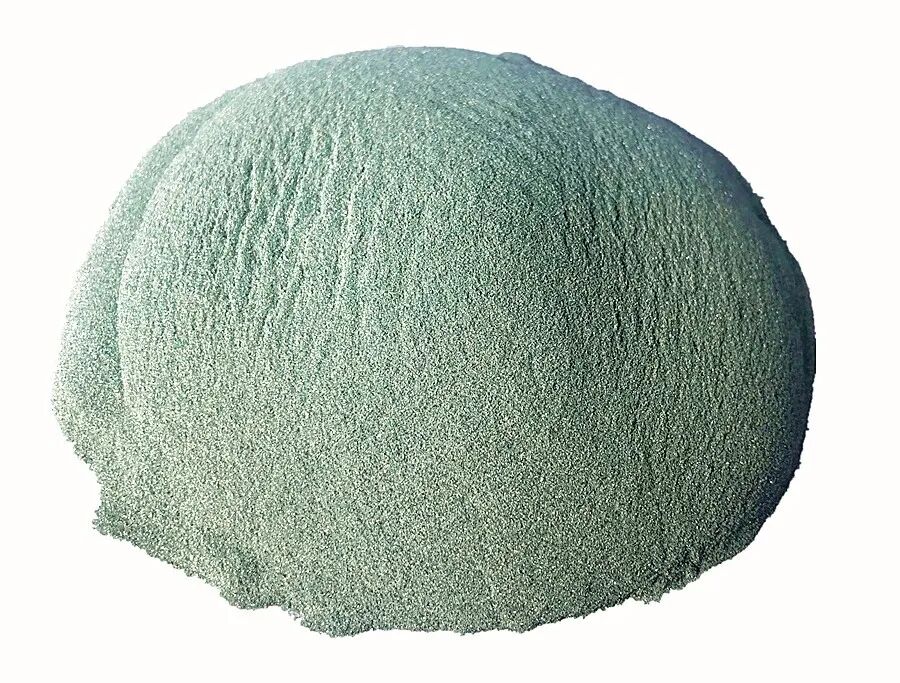

碳化硅陶瓷粉

Silicon carbide ceramic powder

产品纯度高、比表面积大、粉体流动性好,纯度达到99.9%以上。

碳化硅陶瓷粉产品指标如下:

SiC:≥99.9%

F. C≤0.3

G. Si≤0.15

Fe≤0.03

SiO2≤ 0.15


The product has high purity, large specific surface area, good powder fluidity, and the purity reaches more than 99.9%.

The product indexes are as follows:

SiC:≥99.9%

F. C≤0.3

G. Si≤0.15

Fe≤0.03

SiO2≤ 0.15

2 碳化硼陶瓷粉 Boron carbide ceramic powder.png

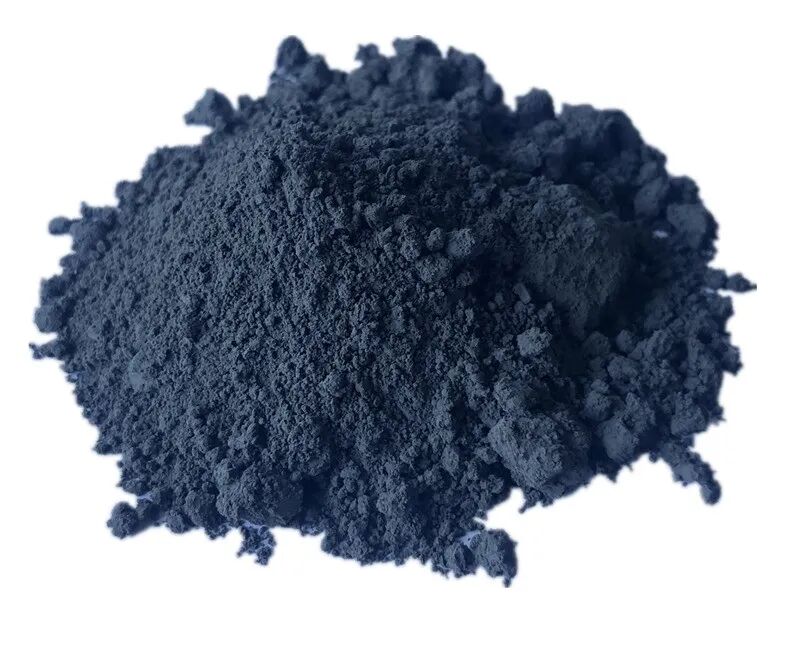

碳化硼陶瓷粉

Boron carbide ceramic powder

产品纯度高、超细、粒度均匀且集中,杂质少,纯度≥97.00%

 粒子直径D50:0.5±0.05um

 粒子直径D50:0.17±0.05um

产品性能指标:

总硼≥77.7%,

游离硼≤0.25%,

总碳≥19.5%,

游离碳≤1.6%,

总硼+总碳≥97%


The product has high purity, ultra-fine particle size, uniform and concentrated particle size, few impurities, purity min 97.00%

 D50:0.5±0.05um

 D50:0.17±0.05um

Product performance index:

Total boron ≥77.7%,

Free boron ≤0.25%,

Total carbon ≥ 19.5%,

Free carbon ≤1.6%,

Boron carbide ≥97%

3 碳化硼造粒粉Boron carbide granulated powder.png

碳化硼造粒粉

Boron carbide granulated powder

无压烧结碳化硼造粒粉由0.5微米陶瓷原粉造粒而成,经过独特的添加剂配方喷雾造粒而成,其产品颗粒均匀,粒型整齐饱满。

造粒粉粒子直径:80-150um


The pressureless sintered boron carbide granulated powder is made of 0.5 micron ceramic raw powder, and is sprayed and granulated through a unique additive formula. Its product particles are uniform and the granules are neat and full.

Granulated powder particle diameter: 80-150um .

4 碳化硅、碳化硼多曲面防弹陶瓷插板Silicon carbide、Boron carbide Multi-curved bulletproof ceramics.png

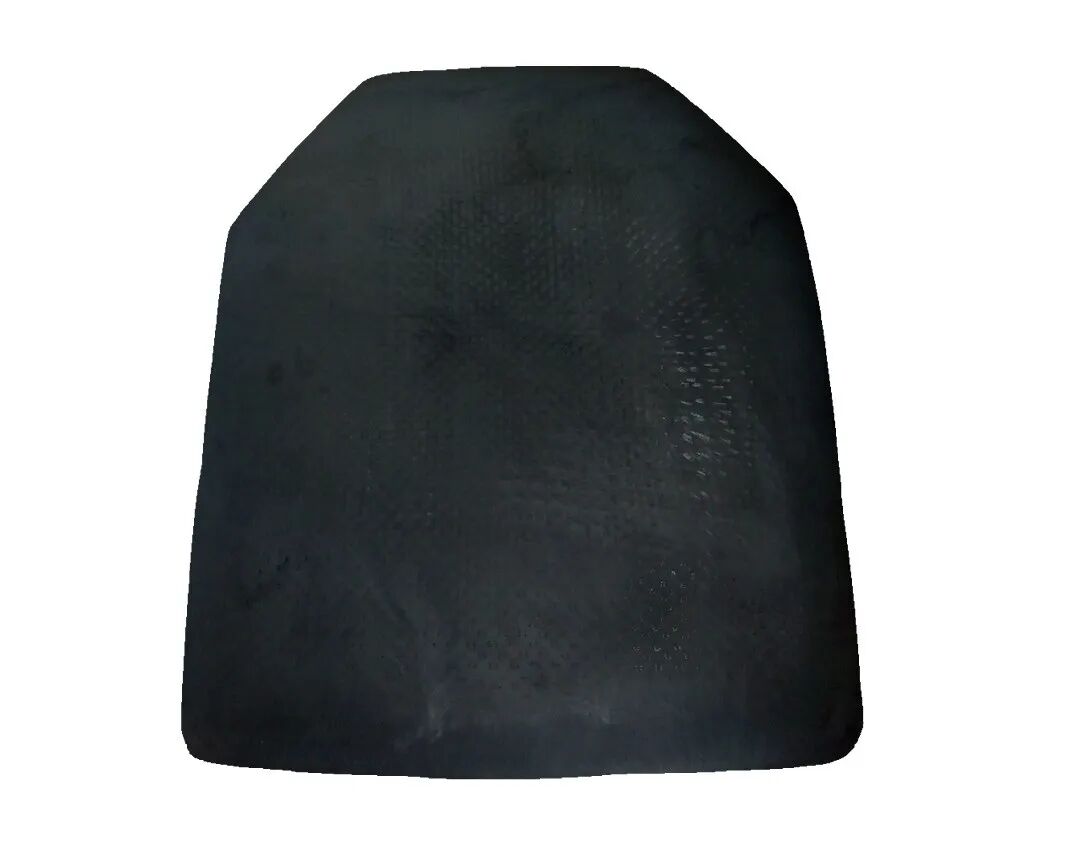

碳化硅/碳化硼多曲面防弹陶瓷插板

Silicon carbide/Boron carbide Multi-curved bulletproof ceramics

按照人体工程学原理,插板两侧采用一体成型的压制模式,使防弹插板更贴合身体,更全面的提供人体防护。

产品抗冲击性强,且具有轻质的特点,使士兵负重小,易于灵活作战。

According to the principles of ergonomics, an integrated molding mode is adopted on both sides of the board, so that the bulletproof board fits the body better and provides more comprehensive body protection.

The product has strong impact resistance, and has the characteristics of light weight, so that the soldier has a small load and is easy to operate flexibly.

5 碳化硼防弹陶瓷Boron carbide bulletproof ceramic.png

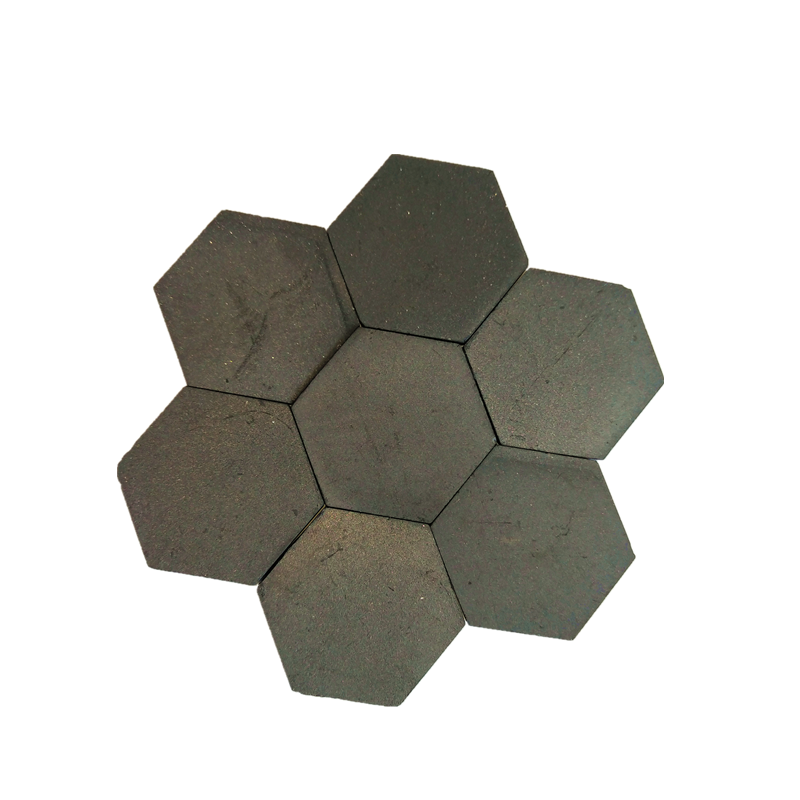

碳化硼防弹陶瓷

Boron carbide bulletproof ceramic

无压烧结碳化硼防弹陶瓷产品具有成本低和大批量高效率的优势,且产品性能优异。

无压烧结碳化硼防弹陶瓷产品性能参数指标

密度≥2.46g/cm3

弯曲强度(三点):≥400MPa

硬度Hv:≥2800

断裂韧性:≥3MPa·m½

弹性模量:≥400GPa


Pressureless sintered boron carbide bulletproof ceramic products have the advantages of low cost and high efficiency in large quantities, and excellent product performance.

Performance parameter index of pressureless sintered boron carbide bulletproof ceramic products

Density ≥2.46g / cm3

Bending strength (three points): ≥400MPa

Hardness Hv: ≥2800

Fracture toughness: ≥3MPa · m½

Modulus of elasticity: ≥400GPa

6 碳化硅纳米陶瓷过滤膜Silicon carbide nano ceramic filter membrance.png

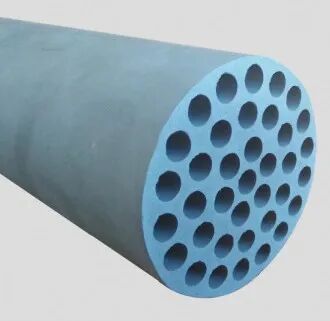

碳化硅纳米陶瓷过滤膜

Silicon carbide nano ceramic filter membrance

产品易清洗、耐高温、耐酸碱、使用寿命长,其过滤精度可达到100nm 。

碳化硅纳米陶瓷过滤膜可实现微滤及纳滤,可应用于酸碱水、高温、高压环境下及海水腐蚀性强的环境中。产品稳定性好、可反向冲洗、膜通量高、使用寿命长,已广泛应用于工业废水处理、生物医药水处理、固液分离、海水淡化等行业。


The product is easy to clean, resistant to high temperature, acid and alkali, and has a long service life. Its filtration accuracy can reach 100nm.

The silicon carbide nano-ceramic filter membrane can realize microfiltration and nanofiltration, and can be used in acidic and alkaline water, high temperature and high pressure environments and seawater corrosive environments. The product has good stability, backwashing, high membrane flux and long service life. It has been widely used in industries such as industrial wastewater treatment, biomedical water treatment, solid-liquid separation, and seawater desalination.



联系方式

 山东华屹科创纳米材料有限公司

电话:86-535-6600456
