企业简介

1．供应各类永磁及磁性组件；

2．帮助客户提供磁性领域的优化方案；

3．通过有效的品保核心工具（TS/16949：APQP，PPAP，FMEA，MASA&SPC）来确保品质；

4．提供全套的模拟及测试以保证产品的可靠性；

5．内部的物流部门将提供更经济，快捷的货运服务。

ABM Magnetics Co., Ltd specialized in the manufacturing and providing engineering solution for Magnetic material and assembly. We insist on "People oriented, Resource optimizing, Value sharing, Agelong mana- gement” as our business philosophy. Most of our engineers worked in this field with more than ten years experiences are available here to provide customer more economical, quick and professional service. Followings are what we can do for you:

1. Supplying all kind of permanent magnets and magnetic components.

2. Providing customer with the optimum solutions in magnetic field to help them saving cost.

3. Effective quality assurance (TS/16949: five core tools(APQP,PPAP,FMEA,MASA and SPC) to ensure good quality.

4. Providing complete stimulation and testing in order to ensure products’ reliability.

5. Providing the economical&fast delivery service with our internal freight department.ood quality.

产品介绍

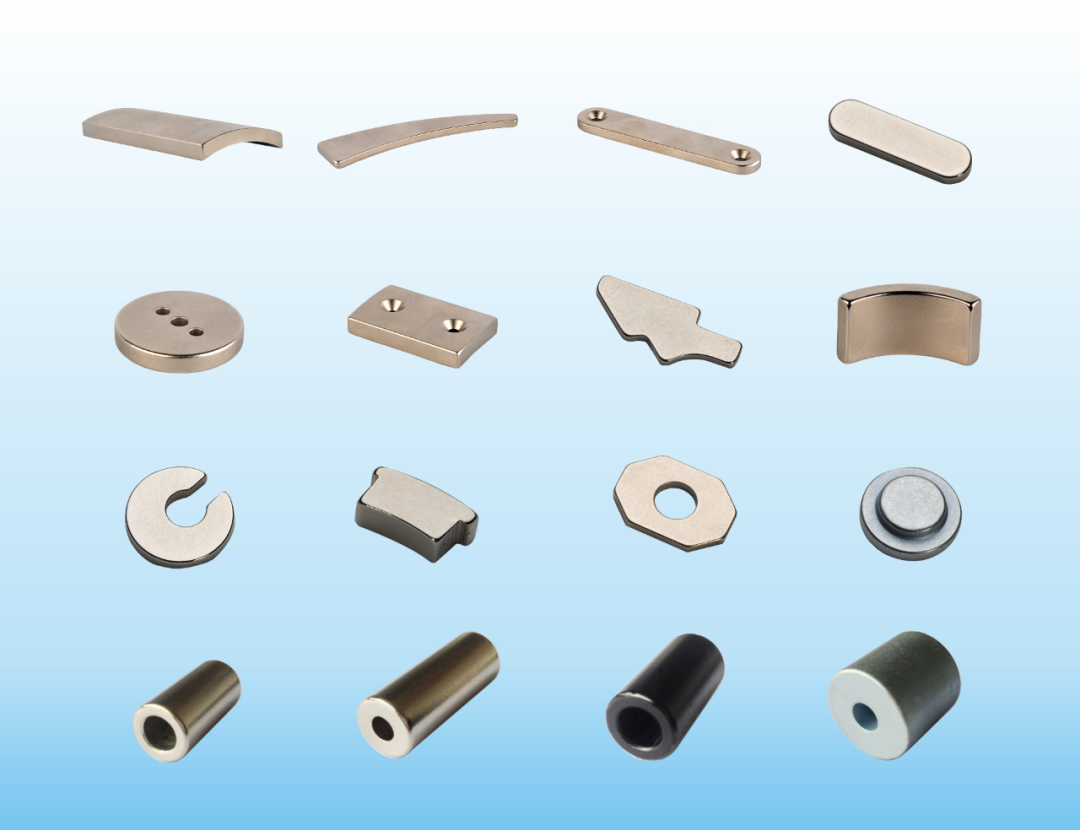

烧结钕铁硼磁铁SNdFeB Magnet

1、剩磁：11000-14500 Gs，内禀矫顽力：11000-30000 Oe，磁能积：35-50MGOe

2、电镀：镀镍，镍铜镍，锌，银，金，环氧树脂，聚对二甲苯等，

3、 电镀后具有较高的抗腐蚀性能

盐雾试验：24小时到72小时

4、工作温度：80摄氏度到210摄氏度

5、结构与尺寸：各种尺寸的瓦形，圆片，圆环，方形及异型

6、充磁方式：轴向端面多极，径向两极特殊的充磁方式

7、磁性组件：高精度的装配及一致性

1. Higher magnetic performance than Bonded magnet(比粘接磁铁有高很多的磁性能)

Br:11000-14500 Gs, Hci :11000-30000 Oe,BHmax:35-50MGOe

2. Coating：Ni,Ni-Cu-Ni,Zn,Ag,Au,epoxy,parylene and other special coating

3. Higher corrosion resistant after coating

 Salt spray testing: 24-72 Hours

4. Working temperature：The maximum working temperature range : 80-210 degree C

5. Structure & dimension：Various sizes in Arc, Cylinder, Ring, Block and Irregular shape

6. Magnetizing pattern：Multi-poles on face alone axial, axial and Diameter cross magnetization and other special magnetizing pattern

7. Magnetic component：High precision assembling and good consistency

 (With steel housing, shaft and other parts )

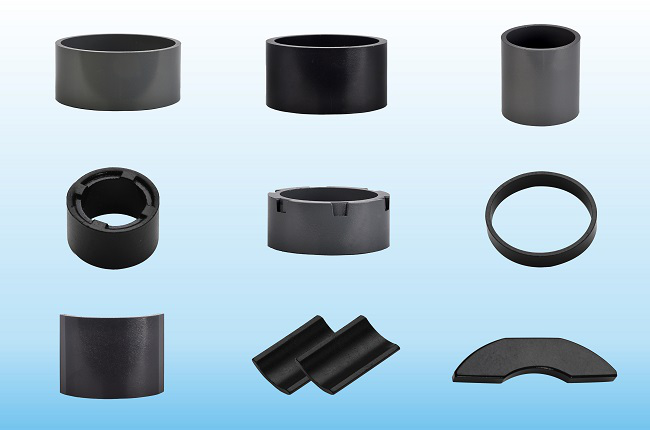

模压粘接钕铁硼磁铁BC NdFeB Magnet

1、比注塑粘接钕铁硼有高很多的磁性能

2、剩磁：3500-8000 Gs，内禀矫顽力：4000-16000 Oe，磁能积：3-12MGOe

3、电泳后，比注塑粘接钕铁硼有更高的抗腐蚀性能力，盐雾试验可达72小时

4、工作温度：最大工作温度：200摄氏度

5、比烧结NdFeB有更灵活的充磁方式

  可多极充磁在圆环的外径，内径，辐射充磁，端面多极充磁，螺旋充磁等。

1. Higher magnetic performance than injection bonded NdFeB

2.Br:3500-8000 Gs, Hci :4000-16000 Oe,BHmax:3-12MGOe

3.Higher corrosion resistant than injection bonded NdFeB Magent,Salt spray testing:≥72Hours

4. Working temperature：The maximum working temperature range : 200 degree C

5. More flexibie magnetizing pattern than sintered NdFeB magnet

Multi-poles on OD,ID&end face(alone axial), radial and Diameter cross magnetization

helix and other special magnetizing pattern

永磁组件Magnetic Assemblies

1、我们的团队专业设计生产永磁组件。

2、零部件包括钕铁硼磁铁，钐钴磁铁，钢轴，钢套。

3、使用高结合力，耐高温胶水组装。

4、磁组件广泛应用在水泵，油泵联轴器（磁铁可装在里面和外面），电动马达，音圈电机，高速转子，开锁器，核磁共振，传感器和编码器等。

5、优点

1：高性能

2：重量轻

3：良好的机械性能

4：良好的动平衡

1、ABM excels at designing and manufactuing the magnetic assemblies.

2、Its components include NdFeB&SmCo magnets,shaft,sleeve,housing.

3、Using the high temperature and high adhesive force giue for assembling process.

4、Application in water or oil pump coupligs(inner and outer manget assemblies),electric drive motors,voice-coilmotor(音圈电机），high speed rotor,latch assemblies,NMR,sensors and encoders

5、Advantages

1：High performance

2:low weight

3:Good mechanical property

4:Good blance
